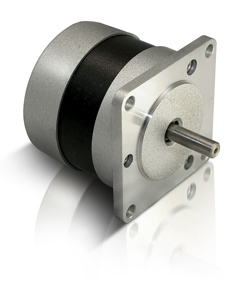

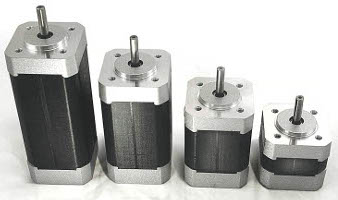

BLDC - Brushless DC motors
- Mounting on flange size NEMA 17 / 23
- Nema 17 Mounting
- High Operating Speed Range
- High Efficiency
- Custom Windings and Modifications Available
- Planetary gearbox available

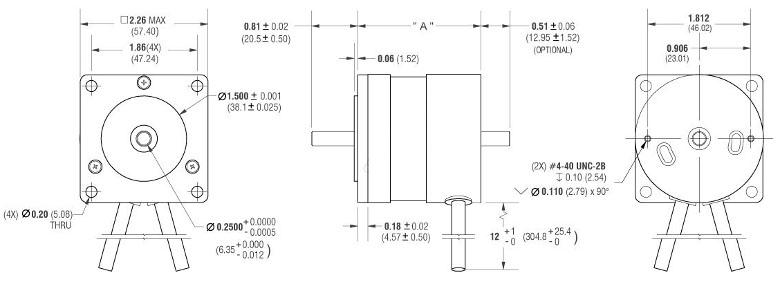

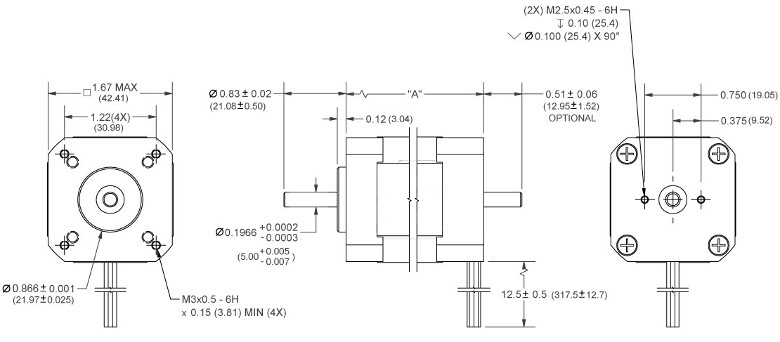

MODEL NUMBER | Dimension "A" Max | Rated Voltage | Rated Torque | Rated Speed | Rated Power | Rated Current | Peak Torque | Peak Current | Rotor Inertia
|
- | mm | Volts | N-m | RPM | Watts | Amps | N-m | Amps | g-cm
|
BLDC17-17-03 | 43 | 24 | 0.07 | 4000 | 29.6 | 2.2 | 0.14 | 4.4 | 27.4
|
BLDC17-17-08 | 43 | 48 | 0.07 | 4100 | 30.3 | 1.05 | 0.14 | 2.1 | 27.4
|
BLDC17-24-04 | 62 | 24 | 0.12 | 4000 | 50.32 | 3.6 | 0.24 | 7.2 | 47.6
|
BLDC17-24-08 | 62 | 48 | 0.12 | 4350 | 54.7 | 1.96 | 0.24 | 3.92 | 47.6
|
BLDC17-32-02 | 82 | 24 | 0.18 | 4000 | 77.55 | 5.7 | 0.37 | 11.4 | 67.7
|
BLDC17-32-06 | 82 | 48 | 0.19 | 4500 | 91.5 | 3.55 | 0.39 | 7.1 | 67.7
|
BLDC17-40-02 | 102 | 24 | 0.25 | 4000 | 104.78 | 7.7 | 0.50 | 15.4 | 86.0
|
BLDC17-40-04 | 102 | 48 | 0.29 | 4100 | 124.39 | 4.42 | 0.58 | 8.84 | 86.0
|
BLDC23-20-02 | 52 | 36 | 0.12 | 4000 | 48.84 | 2 | 0.23 | 4 | 67.7
|
BLDC23-20-08 | 52 | 24 | 0.12 | 3720 | 45.42 | 2.6 | 0.23 | 5.2 | 67.7
|
BLDC23-28-04 | 72 | 36 | 0.25 | 4000 | 103.60 | 3.9 | 0.49 | 7.8 | 122.5
|
BLDC23-28-06 | 72 | 24 | 0.25 | 3750 | 97.13 | 5.3 | 0.49 | 10.6 | 122.5
|
BLDC23-36-02 | 92 | 36 | 0.42 | 4000 | 174.64 | 6.8 | 0.83 | 13.6 | 171.9
|
BLDC23-36-11 | 92 | 48 | 0.42 | 4090 | 178.57 | 4.3 | 0.83 | 8.6 | 171.9
|
BLDC23-46-01 | 115 | 56 | 0.55 | 3000 | 173.16 | 5.3 | 1.10 | 10.6 | 234.1
|
BLDC23-46-05 | 115 | 36 | 0.55 | 3175 | 189.90 | 6.86 | 1.10 | 13.72 | 234.1 |
Request Quote
LOW COST BLDC MOTORS:
BLDC Motory
Hollow Shaft BLDC motors size NEMA17 :
All BLDC motors can be produced with reinforced shaft suitable for drilled through hole for Hollow Shaft BLDC motor.
Shaft is drilled throught the complete length of motor shaft, creating BLDC motor with Hollow Shaft.
On request if ordered large volume all BLDC motors can be customized to have Hollow Shaft.
Model | | NEMA17-1805 | NEMA17-0820 | NEMA17-1542 | NEMA17-0257
|
No load speed | rpm | 5200 | 5200 | 5200 | 5200
|
Rated torque | Nm | 0.018 | 0.08 | 0.15 | 0.2
|
Rated Speed | rpm | 4000 | 4000 | 4000 | 4000
|
Rated Current | A | 0.5 | 2 | 4.2 | 5.7
|
Rated Power | W | 7.6 | 33.5 | 62 | 85
|
Weight | kg | 0.25 | 0.4 | 0.7 | 0.8
|
Length | mm | 30 | 60 | 85 | 93
|
Hollow Shaft BLDC motors size NEMA17 - dimensions
Hollow Shaft BLDC motors size NEMA17 - Quote
