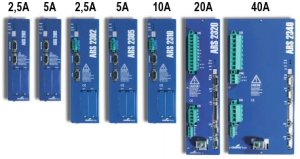

Servo-Drive Control Electronics - Amplifiers series ARS


Features:

Description

The ARS 2000 series represents the new generation of highly dynamic digital servo controllers for three-phase synchronous motors. As the successor of the existing ARS series the philosophy of flexibility and multi-functionality has been continued. The universal encoder interface for a number of angle encoders of well-known manufacturers and the CAN interface are just a few of the outstanding features.

Due to one additional external incremental encoder input and output each, the controllers are suitable for synchronization with variable gear ratios or simple connection to a PLC. Automatic identification functions facilitate and accelerate first commissioning. The servo controllers for control cabinet installation are designed for a rated power of approximately 2500 W for single-phase supply and integrate a Power Factor Correction. The devices thus fulfill the requirements of EN 61000-3-2 regarding current harmonics and achieve a better utilization of the motors and more stable intermediate circuit voltage.


Universal encoder interface

Integrated universal encoder evaluation for the following feedback sensors :

Extension and fieldbus modules

* CAN interface is in standard version
ext modules

Overview table :

Type ARS 2102 ARS 2105ARS 2302ARS 2305 ARS 2310 ARS 2320 ARS 2340
Supply voltageV AC 1~ 100..230 V 3~ 230..480 V AC
DC-supply voltageV DC60..380 V60..700 V DC
DC-link voltageV 360..380 V DC560 V DC
Rated powerkW0,511,252,551220
Maximum power up to 5 skW123,757,5102535
Rated currentAeff2,552,55102040
Peak current up to 5 sAeff5107,5152041,570
Internal brake resistorOhm1651106868684723,5
Dimensions
w x h x d
mm200
54,5
200
225
54,5
200
250
69
240
250
69
240
250
69
240
330
89
242
330
164
242
Weightkg22,13,73,73,78,113,5
