Torque Motors - Direct Drive Servo Motors - Servodrive Torque Motors


Features:

Description

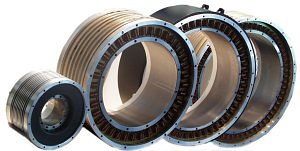

Servodrive AC torque motors serie STR are high pole sychnronous servomotors. Its characteristical parameters makes this serie ideal for high accurate direct drives, for machine-tools and measuring machines. Stator ring is build-up out of high energy permanent magnets. The stator packet is made of cold rolled steel sheets and pressed together. There is an AC star connected winding in stator slots. The stator packet is pressed in to a alumunium cylinder. This cylinder have a machined water way for motor cooling.

Standard Servodrive torque motor is optimized for water cooling. There is machined a water way (cooling chanels) on the motor surface. Complete STR serie is based on water cooling design. All parameters shown here are for water cooled motors. For an applications, where water cooling is not possible, the motors can be optimized for air cooling. Air cooled motor has a smooth surface. Motor has to be attached (mounted) into some assemble so that the heat can be conducted out of motor. This machine surface has to be at least 3x higher that motor surface to maintain proper cooling conditions. Rated and continuous torque of air cooled motor is approximately 40 to 45% of water cooling rated and continuous torque. Peak torque of air cooled motor stays the same.

Torque Motors - Performance Parameters :

Motor TypeDmdiLmpolesMmaxMN-WATERMN-AIRmrequest quote
-mmmmmm-NmNmNmkgrequest quote
STR 1802220080110 .. 2102221045 .. 14020 .. 6313Request a Quote
STR 30044330195110 .. 21044860185 .. 57083 .. 25729Request a Quote
STR 42066450300110 .. 210661950465 .. 1485209 .. 66847Request a Quote
STR 53088565420110 .. 210883400830 .. 2500374 .. 112556Request a Quote
STR 660110700530110 .. 21011053001290 .. 3950581 .. 177891Request a Quote
STR 770132810630110 .. 21013277001850 .. 5550833 .. 2498101Request a Quote
STR 880154920750110 .. 210154103002200 .. 6800990 .. 3060130Request a Quote
STR 10001761040870110 .. 210176132002900 .. 90001305 .. 4050145Request a Quote

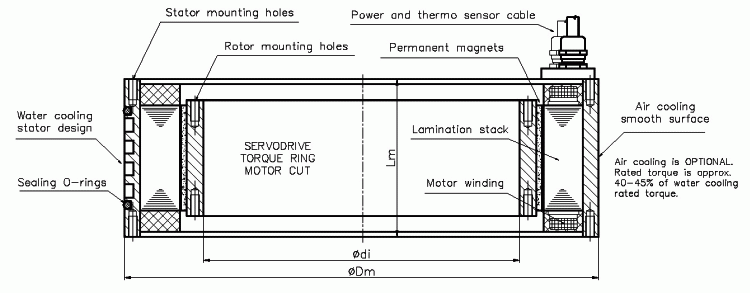

Dimensional drawing :


direct drive

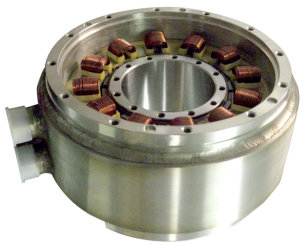

Optional Water Cooled Torque Motor:

Request Quote Request Quote for Water Cooled Torque Ring MotorRequest Quote

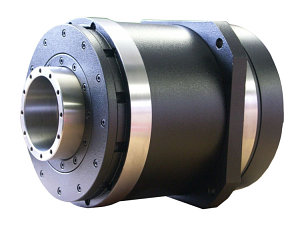

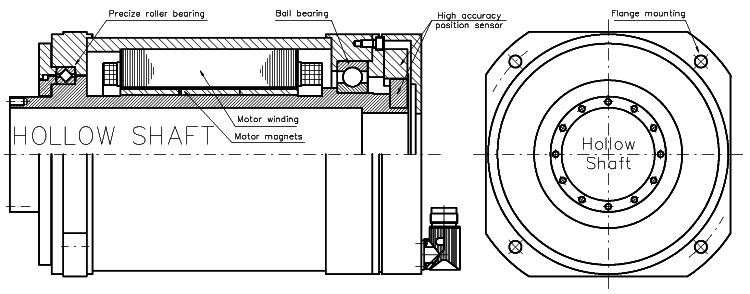

Direct Drive - Complete Drive with Bearing, Feedback device, Connectors, etc.

direct drive

Complete drive includes:

direct drive
MotorMmaxM0I0nnJrequest quote
-NmNmArpmkgcm2request quote
SDM 42F12,334,637417,8Request a Quote
SDM 42H12,333,349107,8Request a Quote
SDM 42I12,332,33817,8Request a Quote
SDM 42L12,331,722127,8Request a Quote
SDM 43F225,58,439049,63Request a Quote
SDM 43H225,56,15229,63Request a Quote
SDM 43I225,54,233509,63Request a Quote
SDM 43L225,5323379,63Request a Quote
SDM 44F30,47,811,9396311,4Request a Quote
SDM 44H30,47,88,6505811,4Request a Quote
SDM 44I30,47,86341811,4Request a Quote
SDM 44L30,47,84,4245311,4Request a Quote
SDM 44N307,83,2196511,4Request a Quote
MotorMmaxM0I0nnJrequest quote
-NmNmArpmkgcm2request quote
SDM 52F215,28,1395923,23Request a Quote
SDM 52K215,25,2448423,23Request a Quote
SDM 52I215,23,9328523,23Request a Quote
SDM 52L215,23239423,23Request a Quote
SDM 53F401015,4404730,17Request a Quote
SDM 53K40109,8451930,17Request a Quote
SDM 53I40107,7348430,17Request a Quote
SDM 53L40105,7253130,17Request a Quote
SDM 54F5614,321,2395137,1Request a Quote
SDM 54K5614,314454237,1Request a Quote
SDM 54I5614,310,9351037,1Request a Quote
SDM 54L 5614,38,1256437,1Request a Quote

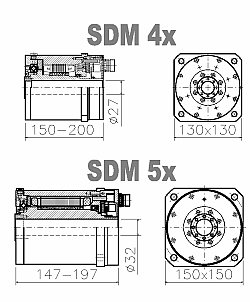

direct drive SDM

MotorMmaxM0I0nnJrequest quote
-NmNmArpmkgcm2request quote
STC11A68204,4795270Request a Quote
STC11X68208,81771270Request a Quote
STC12A105324,5490290Request a Quote
STC12X105329,11066290Request a Quote
STC13B140424,5356320Request a Quote
STC13A140429,1785320Request a Quote
STC14B174524,5274340Request a Quote
STC14A174529617340Request a Quote
STC15A210639,1504360Request a Quote
STC15B210634,5218360Request a Quote
MotorMmaxM0I0nnJrequest quote
-NmNmArpmkgcm2request quote
STC21C278833,71352800Request a Quote
STC21B278837,43012800Request a Quote
STC21A2788314,86512800Request a Quote
STC22E4201263,7823000Request a Quote
STC22C4201267,51943000Request a Quote
STC22A420126154193000Request a Quote
STC23M5631693,8553300Request a Quote
STC23C5631697,51403300Request a Quote
STC23B563169153073300Request a Quote
STC24G7052123,8363500Request a Quote
STC24D7052127,51083500Request a Quote
STC24B70521215,12403500Request a Quote
STC25E8552577,6863700Request a Quote
STC25C85525715,21963700Request a Quote

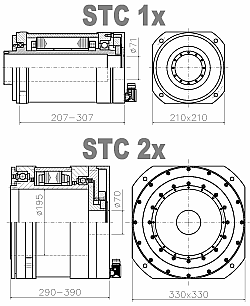

direct drive STC
