Příklady použití :
- Testovací stroje - zatěžování vibracemi, cyklické namáhání, simulace otřesů
- Speciální technologie vyžadující kHz frekvence a mikrometrové zdvihy - chemie, biologie
Kmitajicí cívky - kompletní lineární osa MGV38
| Model | - | MGV 38
|
| Voice Coil | - | AVM30-15
|
| Continuous ForceCoil @100oC | N | 4.6
|
| Peak Force | N | 29.4
|
| Motor Constant | N/SqRt (W) | 2.26
|
| Continuous Power | W | 4.2
|
| Peak Power | W | 169.6
|
| Max Bus Voltage | V | 48
|
| Max Coil T emperature | °C | 155
|
| Continuous current | A | 0.63
|
| Peak Current, Ipeak | A | 4.00
|
| Force Constant | N/A | 7.35
|
| Back EMF Constant, Vemf | V/m/s | 7.35
|
| Inductance | mH | 2.94
|
| Terminal Resistance @ 25°C | Ohms | 10.6
|
| Electrical Time Constant | ms | 0.3
|
| Mechanical Parameters | |
|
| Moving Mass | kg | 0.084
|
| Total Mass | kg | 0.366
|
| Recommended maximum load | kg | 0.3
|
| Stroke | mm | 15
|
| Performance Parameters | |
|
| Model | | MGV 38
|
| Straightness | Nm | ±3^m/25mm
|
| Flatness | Nm | ±3^m/25mm
|
| Bidirectional Repeatability | Nm | ±1.5^m
|
| Linearity without mapping | Nm | ±3^m/25mm
|
| Linearity with mapping | Nm | ±0.5^m/25mm
|
Note: The straightness, bidirectional repeatability and linearity are qualified according to ISO 230-2:1997.
ISO 230-2: 1997 - Bidirectional Repeatability, Bidirectional Accuracy, Bidirectional positional deviation
| Bearing Parameters | |
|
| Model | | MGV 38
|
| Maximum static load capacity | N | 129.0
|
| Maximum static row moment | Nm | 5.0
|
| Maximum static pitch moment | Nm | 3.1
|
| Maximum static yaw moment | Nm | 3.7
|
| Recommended maximum load1 | N | 2.9
|
| Recommended row moment | Nm | 1.7
|
| Recommended pitch moment | Nm | 1.0
|
| Recommended yaw moment | Nm | 1.2
|
The recommended maximum load is based on the load in which the acceleration of the moving mass is at least 1G.

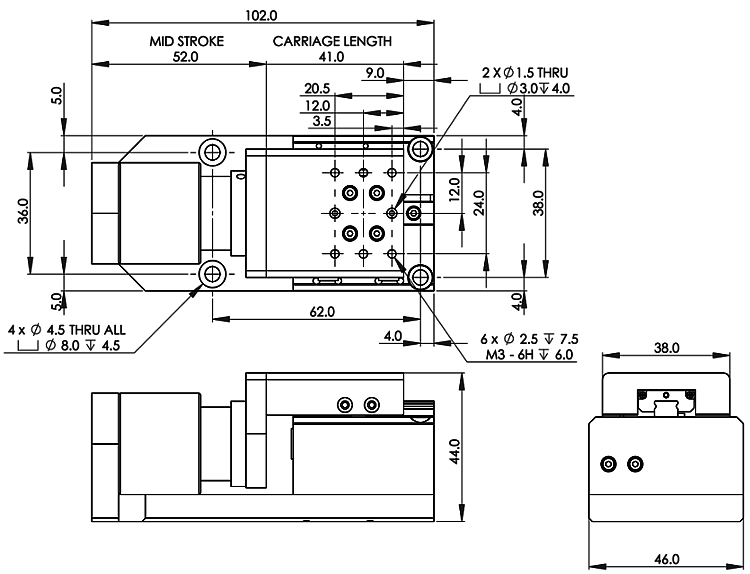

Voice Coil - Kmitajicí cívky - kompletní lineární osa MGV38 - rozměry
Poptávka lineární osy z kmitajících voice coil cívek :
Zaslat poptávku
Kmitajicí cívky - kompletní lineární osa MGV41
| Model | - | MGV 41
|
| Voice Coil | - | AVM40-20
|
| Continuous ForceCoil @100oC | N | 9.9
|
| Peak Force | N | 58.1
|
| Motor Constant | N/SqRt (W) | 3.89
|
| Continuous Power | W | 6.5
|
| Peak Power | W | 222.8
|
| Max Bus Voltage | V | 60
|
| Max Coil T emperature | °C | 155
|
| Continuous current | A | 0.77
|
| Peak Current, Ipeak | A | 4.50
|
| Force Constant | N/A | 12.90
|
| Back EMF Constant, Vemf | V/m/s | 12.90
|
| Inductance | mH | 6.22
|
| Terminal Resistance @ 25°C | Ohms | 11
|
| Electrical Time Constant | ms | 0.6
|
| Mechanical Parameters | |
|
| Moving Mass | kg | 0.162
|
| Total Mass | kg | 0.715
|
| Recommended maximum load | kg | 0.8
|
| Stroke | mm | 20 |
| Performance Parameters | |
|
| Model | | MGV 41
|
| Straightness | Nm | ±3^m/25mm
|
| Flatness | Nm | ±3^m/25mm
|
| Bidirectional Repeatability | Nm | ±1.5^m
|
| Linearity without mapping | Nm | ±3^m/25mm
|
| Linearity with mapping | Nm | ±0.5^m/25mm |
Note: The straightness, bidirectional repeatability and linearity are qualified according to ISO 230-2:1997.
ISO 230-2: 1997 - Bidirectional Repeatability, Bidirectional Accuracy, Bidirectional positional deviation
| Bearing Parameters | |
|
| Model | | MGV 41
|
| Maximum static load capacity | N | 231.0
|
| Maximum static row moment | Nm | 10.6
|
| Maximum static pitch moment | Nm | 7.8
|
| Maximum static yaw moment | Nm | 9.0
|
| Recommended maximum load1 | N | 7.8
|
| Recommended row moment | Nm | 3.5
|
| Recommended pitch moment | Nm | 2.6
|
| Recommended yaw moment | Nm | 3.0 |
The recommended maximum load is based on the load in which the acceleration of the moving mass is at least 1G.

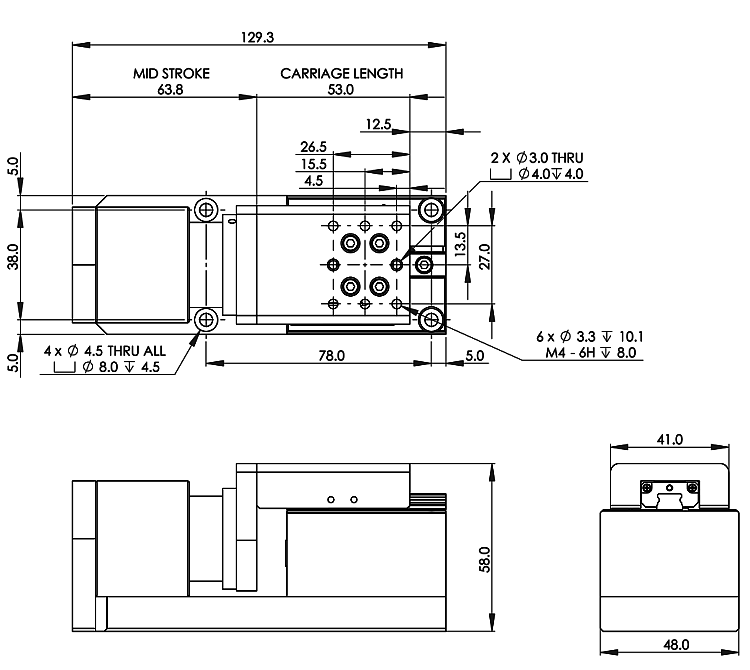

Kmitajicí cívky - kompletní lineární osa MGV41
Poptávka lineární osy z kmitajících voice coil cívek :
Zaslat poptávku
Kmitajicí cívky - kompletní lineární osa MGV52
| Model | - | MGV 52
|
| Voice Coil | - | AVM60-25
|
| Continuous ForceCoil @100oC | N | 26.4
|
| Peak Force | N | 119.0
|
| Motor Constant | N/SqRt (W) | 7.45
|
| Continuous Power | W | 12.5
|
| Peak Power | W | 254.8
|
| Max Bus Voltage | V | 60
|
| Max Coil T emperature | °C | 155
|
| Continuous current | A | 1.55
|
| Peak Current, Ipeak | A | 7.00
|
| Force Constant | N/A | 17.00
|
| Back EMF Constant, Vemf | V/m/s | 17.00
|
| Inductance | mH | 6.42
|
| Terminal Resistance @ 25°C | Ohms | 5.2
|
| Electrical Time Constant | ms | 1.2
|
| Mechanical Parameters | |
|
| Moving Mass | kg | 0.391
|
| Total Mass | kg | 1.703
|
| Recommended maximum load | kg | 2.0
|
| Stroke | mm | 25 |
| Performance Parameters | |
|
| Model | | MGV 52
|
| Straightness | Nm | ±3^m/25mm
|
| Flatness | Nm | ±3^m/25mm
|
| Bidirectional Repeatability | Nm | ±1.5^m
|
| Linearity without mapping | Nm | ±3^m/25mm
|
| Linearity with mapping | Nm | ±0.5^m/25mm |
Note: The straightness, bidirectional repeatability and linearity are qualified according to ISO 230-2:1997.
ISO 230-2: 1997 - Bidirectional Repeatability, Bidirectional Accuracy, Bidirectional positional deviation
| Bearing Parameters | |
|
| Model | | MGV 52
|
| Maximum static load capacity | N | 706.0
|
| Maximum static row moment | Nm | 23.1
|
| Maximum static pitch moment | Nm | 12.0
|
| Maximum static yaw moment | Nm | 12.0
|
| Recommended maximum load1 | N | 19.6
|
| Recommended row moment | Nm | 7.7
|
| Recommended pitch moment | Nm | 4.0
|
| Recommended yaw moment | Nm | 4.0
|
The recommended maximum load is based on the load in which the acceleration of the moving mass is at least 1G.

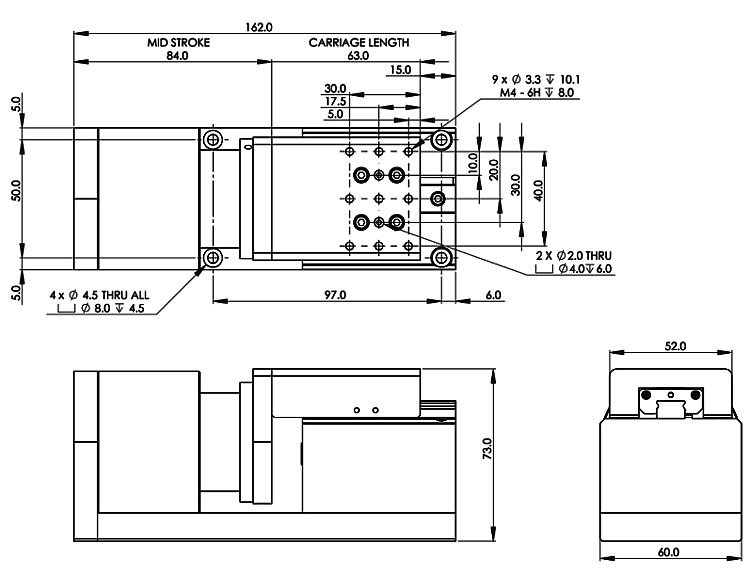

Kmitajicí cívky - kompletní lineární osa MGV52
Poptávka lineární osy z kmitajících voice coil cívek :
Zaslat poptávku
Kmitajicí cívky - kompletní lineární osa MG84
| Model | - | MGV 84
|
| Voice Coil | - | AVM90-30
|
| Continuous ForceCoil @100oC | N | 74.3
|
| Peak Force | N | 315.0
|
| Motor Constant | N/SqRt (W) | 13.21
|
| Continuous Power | W | 31.6
|
| Peak Power | W | 568.4
|
| Max Bus Voltage | V | 60
|
| Max Coil T emperature | °C | 155
|
| Continuous current | A | 3.30
|
| Peak Current, Ipeak | A | 14.00
|
| Force Constant | N/A | 22.50
|
| Back EMF Constant, Vemf | V/m/s | 22.50
|
| Inductance | mH | 6.61
|
| Terminal Resistance @ 25°C | Ohms | 2.9
|
| Electrical Time Constant | ms | 2.3
|
| Mechanical Parameters | |
|
| Moving Mass | kg | 1.386
|
| Total Mass | kg | 5.457
|
| Recommended maximum load | kg | 6.0
|
| Stroke | mm | 30 |
| Performance Parameters | |
|
| Model | | MGV 84
|
| Straightness | Nm | ±3^m/25mm
|
| Flatness | Nm | ±3^m/25mm
|
| Bidirectional Repeatability | Nm | ±1.5^m
|
| Linearity without mapping | Nm | ±3^m/25mm
|
| Linearity with mapping | Nm | ±0.5^m/25mm |
Note: The straightness, bidirectional repeatability and linearity are qualified according to ISO 230-2:1997.
ISO 230-2: 1997 - Bidirectional Repeatability, Bidirectional Accuracy, Bidirectional positional deviation
| Bearing Parameters | |
|
| Model | | MGV 84
|
| Maximum static load capacity | N | 1710.0
|
| Maximum static row moment | Nm | 176.0
|
| Maximum static pitch moment | Nm | 51.2
|
| Maximum static yaw moment | Nm | 51.2
|
| Recommended maximum load1 | N | 58.9
|
| Recommended row moment | Nm | 58.7
|
| Recommended pitch moment | Nm | 17.1
|
| Recommended yaw moment | Nm | 17.1 |
The recommended maximum load is based on the load in which the acceleration of the moving mass is at least 1G.

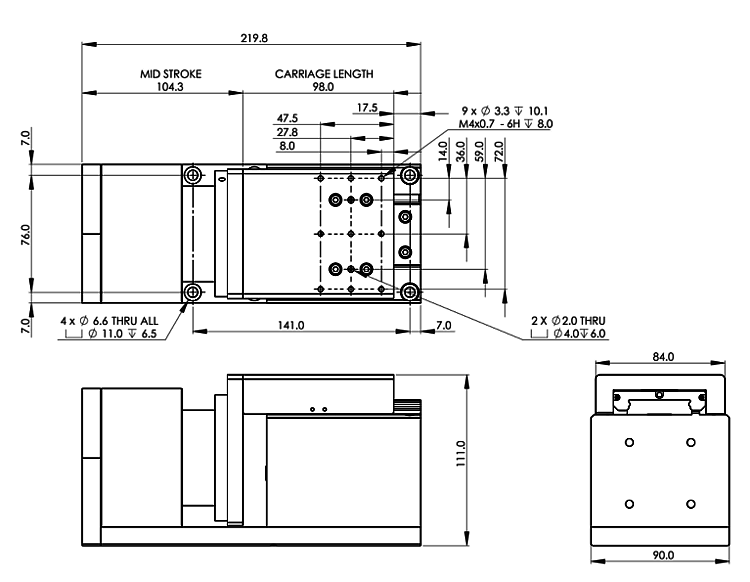

Kmitajicí cívky - kompletní lineární osa MGV84
Poptávka lineární osy z kmitajících voice coil cívek :
Zaslat poptávku

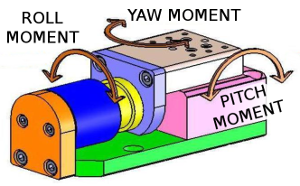

Max momenty zatěžující vedení kmitajících cívek :
Rozlišení enkodéru
- standardně 1.0 mikrometru
- 0.5 mikrometru volitelně
- 0.1 mikrometru volitelně
Pro vertikální aplikace je možné použití předepnutí :
* L0100 = 100g předepnutí
* L0200 = 200g předepnutí
* L0500 = 500g předepnutí
* L1000 = 1000g předepnutí
* E00 = Counter-balance Device activated and Resting Position at 0mm
* E15 = Counter-balance Device activated and Resting Position at 15mm
* E20 = Counter-balance Device activated and Resting Position at 20mm
* E25 = Counter-balance Device activated and Resting Position at 25mm
* E50 = Counter-balance Device activated and Resting Position at 50mm
Poptávka lineární osy z kmitajících voice coil cívek :
Zaslat poptávku

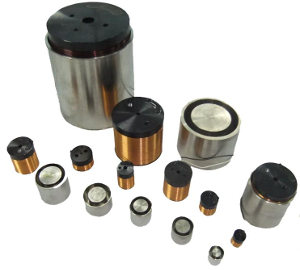

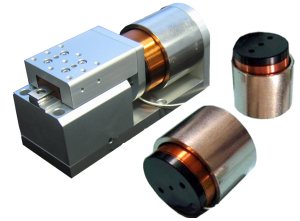

Pouze voice coil komponenty - cívka a magnet
Pro vlastní stavbu strojů a lineárních pohonů jsou k dispozici i pouze jako komponenty.

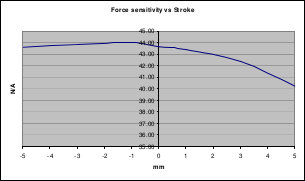

Cívka a magnet mají speciální patentované provedení k dosažení do největší
linearity síly v závislosti na zdvihu. Tímto je možné v regulačních smyčkách
daleko stabilněji řídit požadovanou polohu, než při použití jednoduše vyrobeného
elektro magnetu.
