Rotary Slip Rings - Rotary Joint - Signal and Power transfer over rotary joint

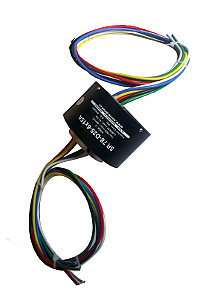

slip rings

Rotary Slip Rings - Features:


Slip Rings Rotary Joint - Description :

Slip rings can be used in any electromechanical system requiring unrestrained, continuous rotation while transmitting power and/or data from a stationary to a rotating structure.

A slip ring is also called rotary electrical interface, collector, swivel or rotary joint.

slip ring principle

The KS Series make use of a special technology allowing to get multiple contact points between brushes and ring, low friction torque, reduced mechanical noise and low wear.

Slip Rings can be used in any system requiring the transmission of electrical and/or power signals to an intermittently or continuously rotating shaft. Thanks to the small ring diameter, the KS Series grants low peripheral speed between brushes and rings, as well as reduced dynamic imbalance what means very low wear. Moreover, the use of noble metals (gold to gold alloy) assures long lasting using life, reduced noises and interferences between circuits, low friction torque.

The above features make the KS Series specially suited to transmission of critical signals, such as hi frequency signals (video, field buses, etc.), very low currents and voltages (strain gages, thermocouples, measuring equipment etc.), even if versions with up to 6A circuits are available.

Conceived to deliver a flexible, cost-effective, reliable and hi-quality solution, these units are available in many standard configurations and with 6 to 56 circuits. Their compact size allows installation into small systems thus requiring high performances. The KS Series can easily meet the needs of particular applications and also be customized on demand (connectors, cables length, special cables, number of circuits, etc.).


Solid Shaft Rotary Slip Rings


Slip Rings - Current Transfer Capacity

ModelN1 x Number of RingsAmpers per Ring [A]N2 x Number of RingsAmpers per Ring [A]Total Number of RingsTotal Ampers Transfer [A]Outer Diameter [mm]Inner Hole Diameter [mm]Length [mm]On StockRequest QuoteDatasheet
KS05-4x1A41145,905,9
KS05-4x8A81185,905,9
KS06-4x8A81186,506,5
KS11-4x6A611611011
KS12-3x2A323612014ano
KS12-6x2A6261212014ano
KS12-12x2A122122412019,5ano
KS12-18x2A182183612023ano
KS22-6x2A6261222019ano
KS22-12x2A122122422028ano
KS22-2x6A-2x2A222641622028
KS22-18x2A182183622034ano
KS22-24x2A242244822042ano
KS22-36x2A362367222057
KS25-36x2A362367225060
KS25-56x2A5625611225086
KS32-2x14A21422832028ano
KS32-3x14A31434232028ano
KS32-2x14A-2x2A2221443232028ano
KS45-6x20A-2x5A25620813045064,5
KS22W-3x4A3431222021
KS22W-3x8A3832422029
KS22W-3x10A31033022035
KS22W-3x20A32036022043
Delivery Stock Items 1week. Non Stock Items and Custom Slip Rings 4weeks.

Solid Shaft Slip Rings Mounting:

How To Mount

Request a Quote for Solid Shaft Rotary Slip Rings:

Please specify Number of Wires, Current (Ampers) and Voltage Needed, also if nesceary speed of rotation and environmental protection. For High Speed Data Transfer : frequency in MHz or transfer rate in Mbps.

Request Quote Request Quote Request Quote


Hollow Shaft Rotary Slip Rings:


Hollow Shaft Slip Rings - Transfer Capacity

ModelN1 x Number of RingsAmpers per Ring [A]N2 x Number of RingsAmpers per Ring [A]Total Number of RingsTotal Ampers Transfer [A]Outer Diameter [mm]Inner Hole Diameter [mm]Length [mm]On StockRequest QuoteDatasheet
KS54-D12-6x5A65630541234yes
KS54-D12-12x5A1251260541248yes
KS54-D12-18x5A1851890541262yes
KS54-D12-24x5A24524120541276yes
KS78-D25-6x15A6152690782547
KS78-D25-48x2A1548248967825119
KS99-D38-6x15A6152690993845
KS99-D38-48x2A1548248969938117
KS120-D50-6x15A61556901205061
KS120-D50-72x5A157257236012050211
KS135-D60-96x10A96109696013560on request -
KS155-D70-96x10A96109696015570on request -
KS180-D80-96x10A96109696018080on request -
KS195-D90-96x10A96109696019590on request -
KS203-D100-96x10A961096960203100on request -
KS1000-D206-96x10A9610969601000230on request -

Hollow Shaft Slip Rings Mounting:

How To Mount

Request a Quote for Hollow Shaft Rotary Slip Rings:

Please specify inner hole diameter, number of wires, current (Ampers) and voltage needed, also if nescesary speed of rotation and environmental protection. For High Speed Data Transfer : frequency in MHz or transfer rate in Mbps.

Request Quote Request Quote Request Quote


Fiber optics rotary joint - High speed data and video transfer

Special Slip Rings are used for transfer of high frequency signals or high speed data. Combination of electric and optics (Fiber Optics Rotary Junction) allows achieve speeds up to GHz or Gbps in one simple package.


For more informations, please contact us.

For inspection robots, where is not possible to use long and heavy electric cable, its very convinient to use an optical cable for video transfer. Also slip ring allows rotary camera to get a 360° picture.


For more informations, please contact us.

Fiber Optics Rotary Joint:

Request Quote Request Quote Request Quote


ATEX EX Slip Rings for Explosion-Proof Environment

Explosion Proof Slip Rings :
For more informations, please contact us.

Request a Quote for Explosion Proof Slip Rings:

Request Quote Request Quote Request Quote


Rotary Slip Rings Options :

Electrical Slip Rings up to 60 Rings and Ampers
Slip Rings with higher IP protection (IP65/IP67)
Electrical Slip Rings with Hollow Shaft up to 96 Rings and 1000 Ampers
High Speed Data Transfer over rotary joint, Ethernet Slip Ring
Fiber Optics Slip Rings

Explosion Proof Slip Rings - ATEX
Special Slip Rings
Slip Rings with no Housing - Build-In Design
Flat Slip Rings
Combination of Fluid Pneumatic and Electric Slip Ring in one Package

Special options for Rotary Slip Rings:


Special Slip Rings - Request Quote:
